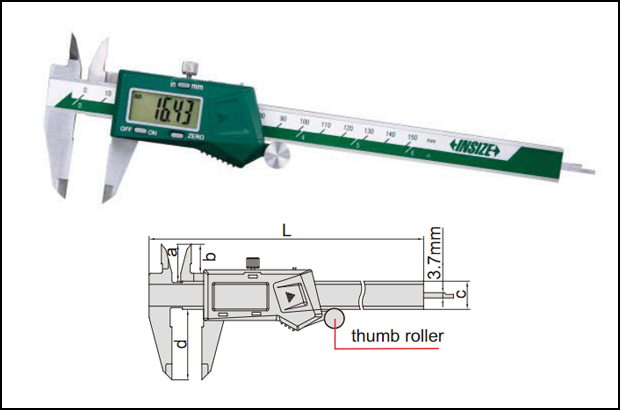

Digital Calipers
- Resolution: 0.01mm, 0.0005", 1/128"
- Buttons: unit (mm/in/fraction), ABS, on/off, zero
- Absolute and incremental measurement
- Battery CR2032, automatic power off
- Meet DIN862
- Made of stainless steel
Digital Calipers
- Resolution: 0.01mm/0.0005"
- Buttons: on/off, zero, mm/inch
- Automatic power off, move the digital unit to turn on power
- Battery CR2032
- Data output
- Meet DIN862
- Made of stainless steel
- Optional accessory: data output cable
- (code 7315-21, 7302-21)

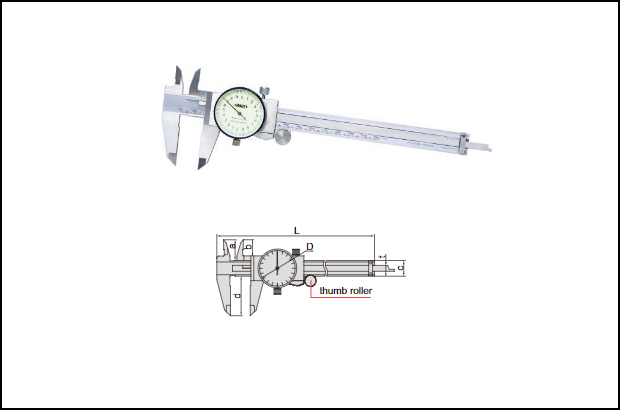

Dial Calipers
- Shockproof Dial Indicator
- Made of Stainless Steel

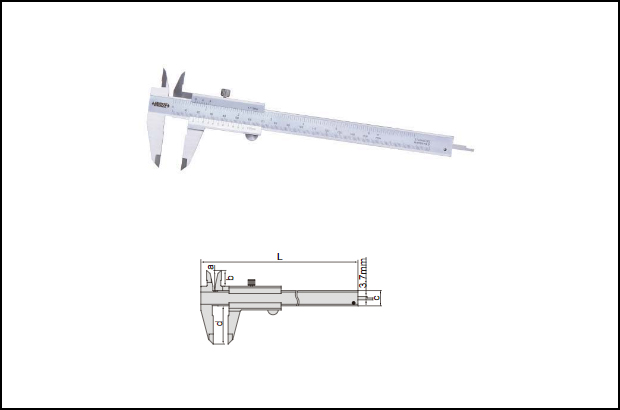

Vernier Calipers
- Meet DIN862
- Made of Stainless Steel
- Satin Chrome Plated reading surface

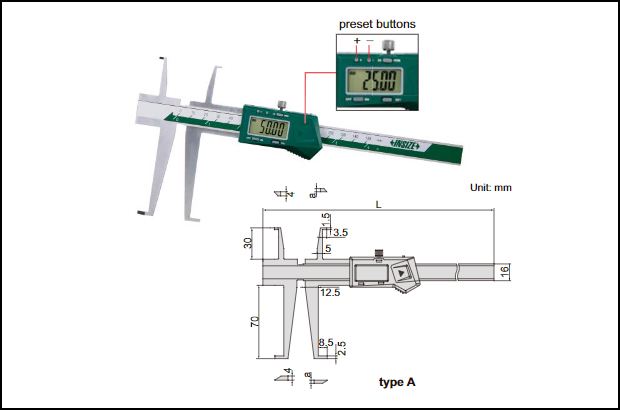

Digital Inside Groove Calipers
- Measure diameter of grooves inside bores
- Resolution: 0.01mm/0.0005"
- Buttons type A: on/off, set, mm/inch, preset (+,-)
- Buttons type B: on/off, zero, mm/inch, ABS/REL, hold
- Battery CR2032
- Made of stainless steel
- Optional accessory: depth stop (code 6143)

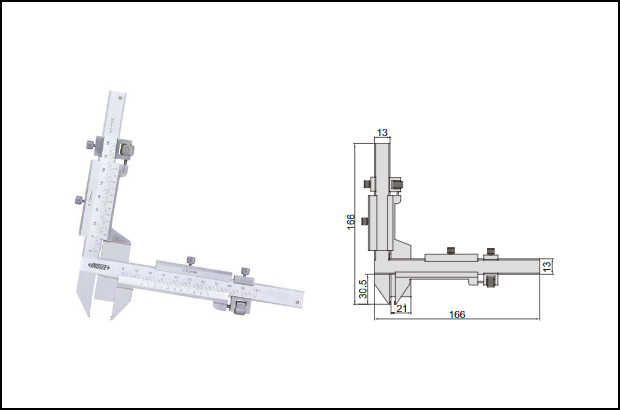

Gear Tooth Varnier Calipers
- Carbide tips
- Measure the tooth thickness by positioning the tooth height, (for tooth height>1mm)
- Made of stainless steel
- Satin chrome plated reading surface

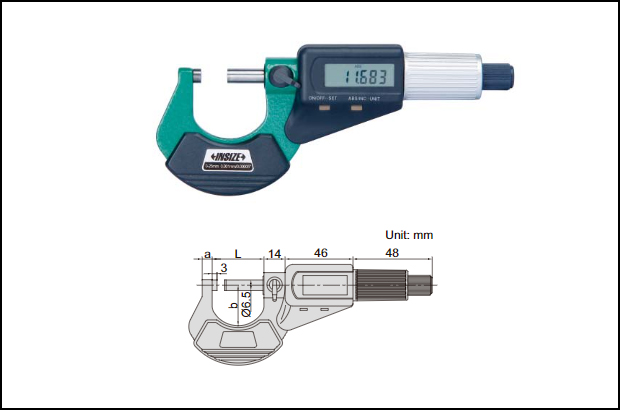

Digital Outside Micrometer
- Resolution 0.001mm / 0.00005"
- Button function: on/off, set, mm/inch, ABS/INC
- No data output
- Automatic power off
- Carbide measuring faces
- 1 Friction thimble
- Supplied with spherical anvil
- Setting standards are included (except 0-25mm/0-1")

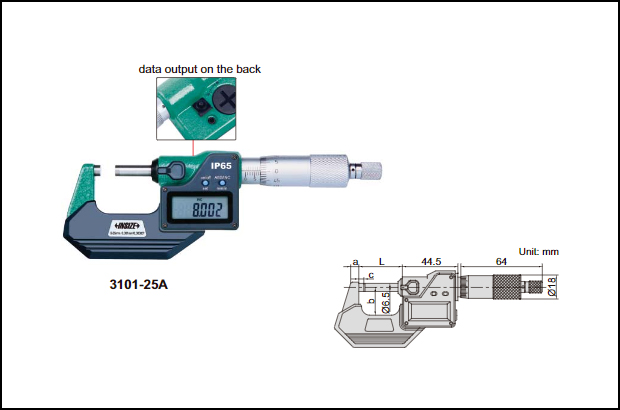

Water Proof Digital Outside Micrometer
- IP65 dust/waterproof
- Button function: on/off, set, mm/inch, ABS/INC
- Data output
- Automatic power off
- Carbide measuring faces
- Supplied with spherical anvil
- Setting standards are included (except 0-25mm/0-1")
- Optional accessory: data output cable
- (code 7315-30, 7302-30)

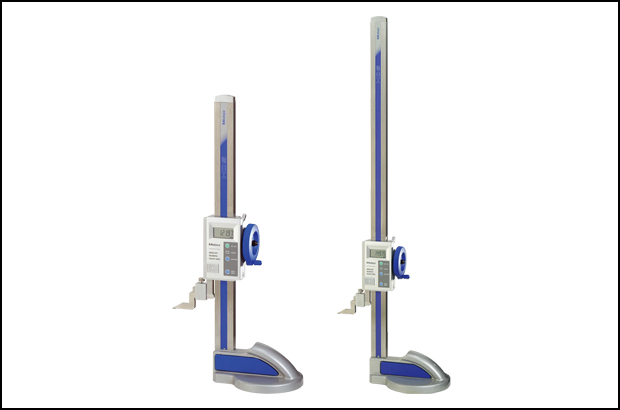

Height Gage
ABSOLUTE Digimatic Height Gage SERIES 570 — with Ergonomic Base
- Allows smooth elevation by the slider adjustment wheel, which is the same as the well-established double-column structure height gage.
- Large slider-clamp lever ensures positive and accurate clamping action.
- High durability and high accuracy are ensured by an improved column design (35×15 mm).
- Allows integration into statistical process control and measurement systems for models with measurement data output connector.
- Battery: SR44 (1 pc.), 938882. For initial operational checks (standard accessory)
- Battery life is 20,000 hours under normal use.
- For precision Black Granite Surface Plates, refer to page E-49.

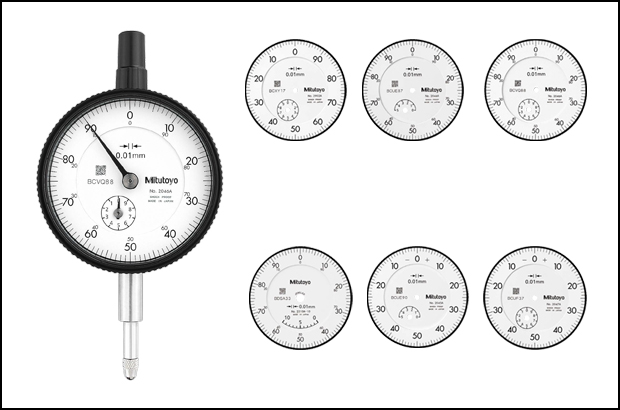

Dial Indicators
Comparison measuring instruments which ensure high quality, high accuracy and reliability.
- Standard 0.01 mm graduation dial gages having a bezel with an outside diameter of 57 mm.
- The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
- Watertight assembly of bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
- The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
- A carbide contact point is used.
- The grand gear is made of stainless steel with high resistance to wear and deformation.
- Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.

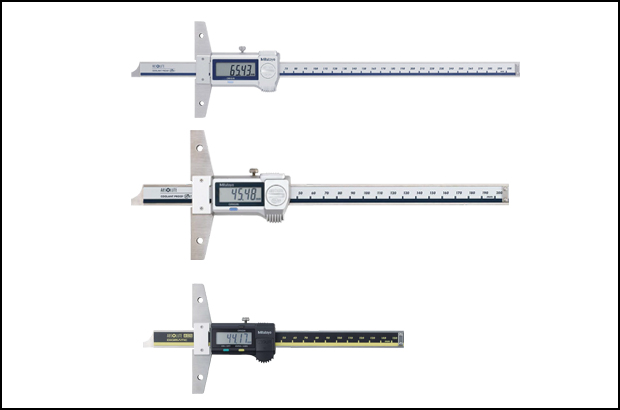

ABSOLUTE Digimatic Depth Gage SERIES 571
- Coolant proof models achieve IP67 protection level.
- Enables stable depth measurement with a resolution of 0.01 mm.
- ABSOLUTE Digital Caliper.
- Sliding operation of models with the measuring ranges 150 mm (6 in), 200 mm (8 in) and 300 mm (12 in) is smooth and comfortable.
- Allows integration into statistical process control and measurement systems for models with measurement data output connector.
- Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory).
- Optional longer extension bases are available.

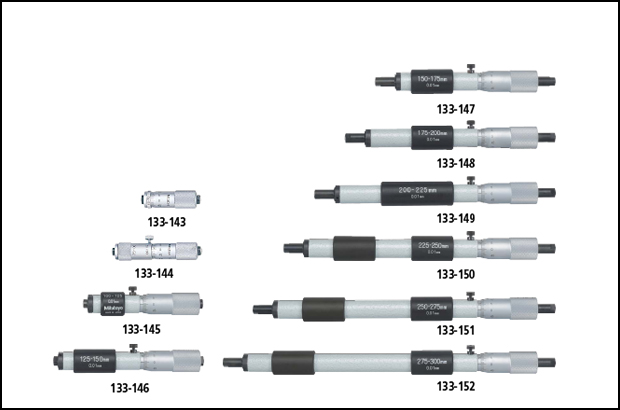

Inside Micrometers
For easy and accurate measurement of inside size and diameter
- Standard single rod type inside micrometer.
- Carbide measuring faces.
- The sleeve is rotated to adjust the reference point adjustment when setting to a length standard.
- Optional Setting Rings (nominal size below 300 mm), CERA Inside Micro Checker and Gauge Block Accessory Sets are available as reference gages datum adjustment.
