HSS Hand Taps
| Nominal Diameter | TPI | Overall Length | Thread Length | Shank Diameter | Square Size | Square Length | Lead Chamfer | Taper | Second | Bottom | Set |
| Tapping Drill Diameter | EDP No. | EDP No. | EDP No. | EDP No. | |||||||
| ØD1 | p | L | L1 | ØD3 | a | L3 | Ød1 | ||||
| 1/8” | 28 | 59 | 15 | 8 | 6.3 | 9 | 8.8 | FAA0204606 | FAA0204610 | FAA0204614 | FAA0204602 |
| 1/4” | 19 | 67 | 19 | 10 | 8 | 11 | 11.8 | FAA0204627 | FAA0204631 | FAA0204634 | FAA0204623 |
| 3/8” | 19 | 75 | 21 | 12.5 | 10 | 13 | 15.25 | FAA0204648 | FAA0204652 | FAA0204656 | FAA0204644 |
| 1/2” | 14 | 87 | 26 | 16 | 12.5 | 16 | 19 | FAA0204665 | FAA0204669 | FAA0204673 | FAA0204662 |
| 5/8” | 14 | 91 | 26 | 18 | 14 | 18 | 21 | FAA0204680 | FAA0204682 | FAA0204684 | FAA0204678 |
| 3/4” | 14 | 96 | 28 | 20 | 16 | 20 | 24.5 | FAA0204689 | FAA0204692 | FAA0204695 | FAA0204686 |
| 7/8” | 14 | 102 | 29 | 22.4 | 18 | 22 | 28.25 | FAA0204702 | - | FAA0204704 | FAA0204700 |
| 1 " | 11 | 109 | 33 | 25 | 20 | 24 | 30.75 | FAA0204708 | FAA0204713 | FAA0204715 | FAA0204706 |
| 1.1/4 " | 11 | 119 | 36 | 31.5 | 25 | 28 | 39.5 | FAA0204722 | FAA0204724 | FAA0204727 | FAA0204721 |
| 1.1/2 " | 11 | 125 | 37 | 35.5 | 28 | 31 | 45 | FAA0204733 | FAA0204735 | FAA0204738 | FAA0204732 |
| 1.3/4 " | 11 | 132 | 39 | 35.5 | 28 | 31 | 51 | FAA0204743 | - | FAA0204744 | FAA0204742 |
| 2 " | 11 | 140 | 41 | 40 | 31.5 | 34 | 57 | FAA0204746 | - | FAA0204749 | FAA0204745 |

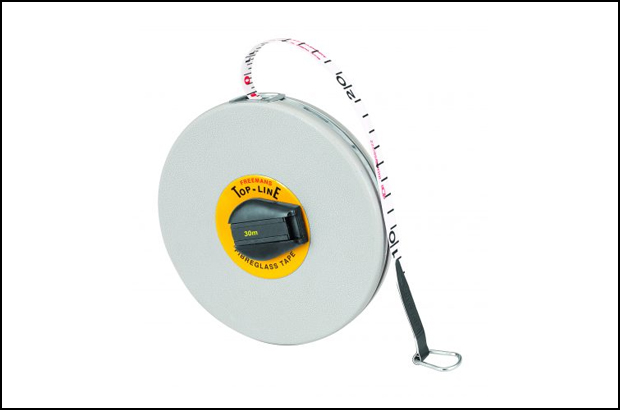

Measuring Tapes | TOP LINE-FT
- Unbreakable ABS case
- Heat sealed markings on the tape blade for longer life
- Durable winding mechanism
- Case reinforced with stainless steel band
- Stainless steel mouth
- 13mm width tape ribbon
- Steel end hook
- Steel end hook w/claw

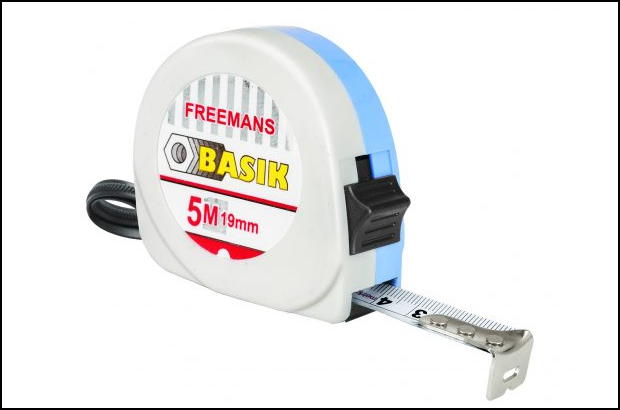

Pocket Measuring Tapes | BASIK – BKL
- Click action front lock
- Unbreakable ABS case
- Belt clip
- End Hook: Standard (13mm; 16mm)
- End Hook: Standard (19mm)
- End Hook: Standard (25mm)
- End Hook: Metric
- End Hook: Magnetic
- End Hook: Magnetic Metric
- End Hook: Bullhook
- End Hook: Nail slot & Scriber

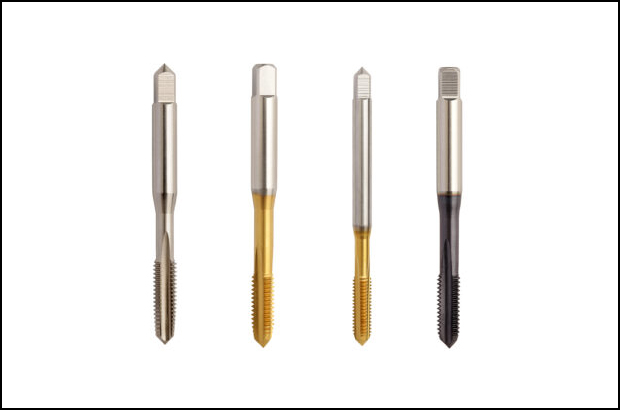

Straight Flute
Emkay manufactures straight fluted taps to various standards like ISO, DIN, etc. These taps are mainly recommended for Cast Iron and SG Iron components. These taps can also be designed for tapping on other components like cast iron, brass, magnesium, bronze, etc.

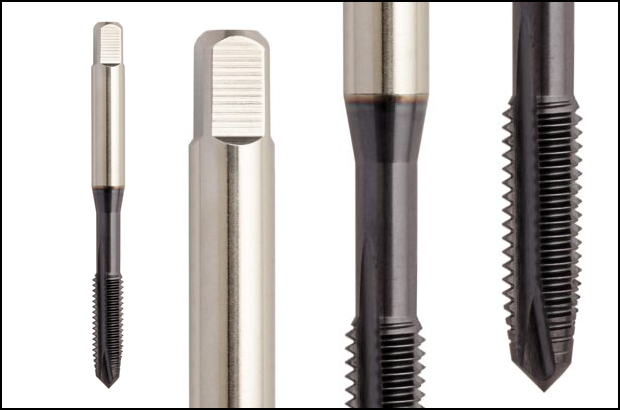

VX Series High Performance Spiral Pointed Taps
- HSS-E Premium grade High Vanadium Steel having better wear resistance.
- 30% improved life in comparison to standard series taps. High Performance Spiral Pointed Taps

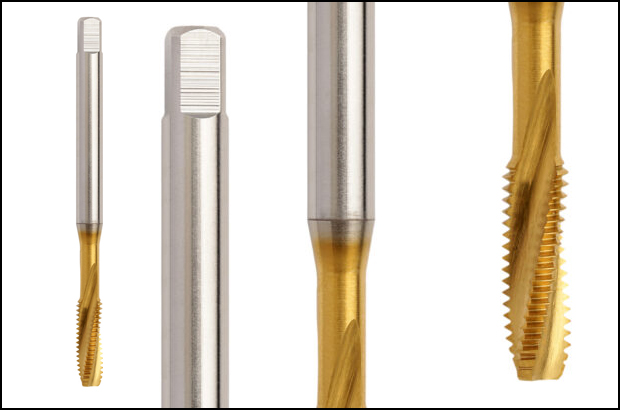

Spiral Flute 150 Taps Standard Series HSS-E
- Spiral Flute 150 Taps are used for a wide range of material
- Application: Blind Hole.

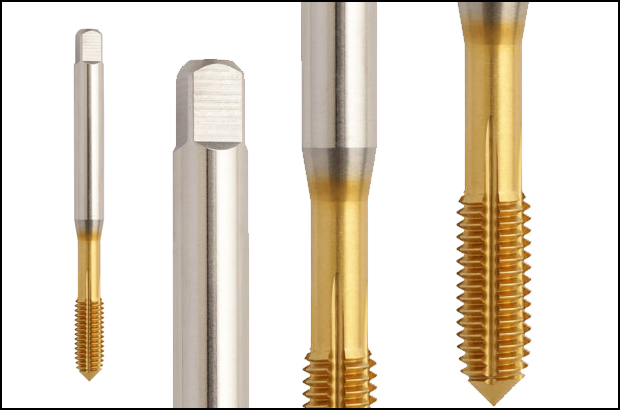

Standard Series
Standard series Forming Taps are used for general applications. Taps are available with and without Oil Grooves. Also available in various coatings.

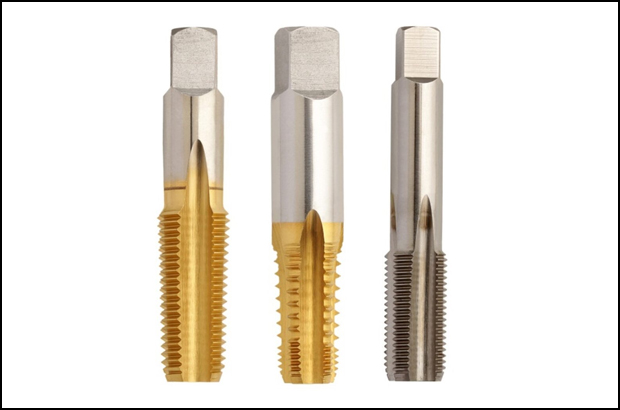

Pipe Taps
Emkay manufactures pipe taps to various standards like BSP, BSPT, NPT, NPTF, NPS, NPSF, etc. We also provide these taps in spiral flutes and with interrupted threads.

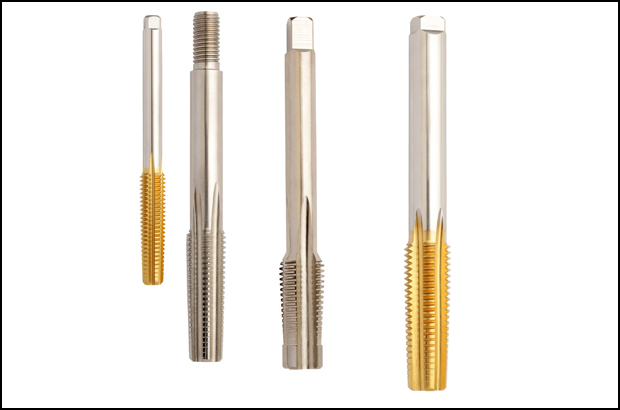

Hi-Performance Nib/Nut Taps For Nut Tapping
Emkay Tools Nib Taps are specially made for automatic tapping of nuts in high speed Nut Tapping Machines in materials like stainless steel etc. These taps have appropriate geometry and flute profile which deliver high quality and consistency in threading. They can also be designed to specific tolerances and applications to suit customers' working conditions.
