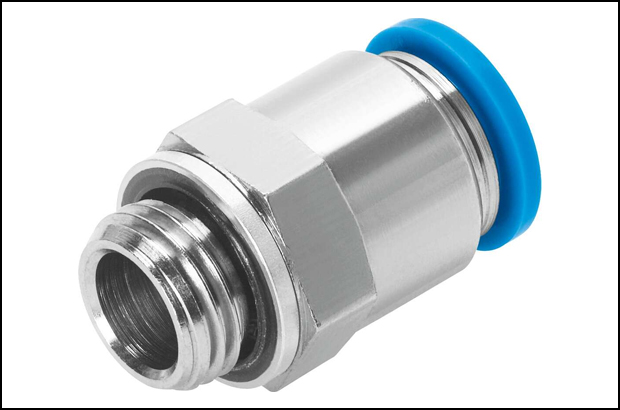

Push-in fitting
- Size : Standard
- Nominal width : 2.5 mm
- Type of seal on screwed trunnion : Coating
- Mounting position : Any
- Pack size : 10
- Structural design : Push-pull principle
- Operating pressure for entire temperature range : -0.95 bar ... 6 bar
- Temperature-dependent operating pressure : -0.95 bar ... 14 bar
- Maritime classification : See certificate
- Operating medium : Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Information on operating and pilot media : Operation with oil lubrication possible
- Corrosion resistance class (CRC) : 1 - Low corrosion stress
- Ambient temperature : -10 °C ... 80 °C
- Product weight : 6.1 g
- Pneumatic connection 1 : External thread R1/8
- Pneumatic connection 2 : for pneumatic tubing outside diameter 4 mm
- Releasing ring color : Blue
- Note on materials : RoHS-compliant
- Housing material : PBT
- Releasing ring material : POM
- Material of tubing seal : NBR
- Material of tube retaining claw : High-alloy stainless steel

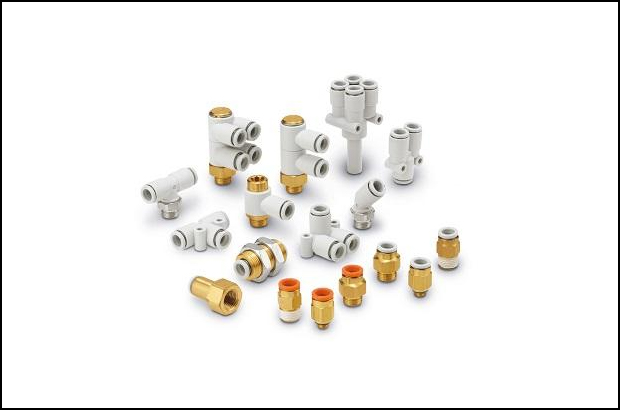

One-touch Fittings KQ2
- Possible to use in vacuum to –100 kPa.
- Body type: Totaled 51 models
- Thread material/Surface treatment(Treated or Non-treated): 2 types
- Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated
- Applicable tubing O.D. Round Type Metric： ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16 Inch：ø1/8'', ø5/32'', ø3/16'', ø1/4'', ø5/16'', ø3/8'', ø1/2'' Oval Type Metric： ø3.2, ø4, ø6 Inch：ø1/8'', ø5/32'', ø3/16''
- Connection thread Metric：M3, M5, M6 R,Rc ：1/8, 1/4, 3/8, 1/2 G：1/8, 1/4, 3/8, 1/2 NPT：10-32UNF, 1/16, 1/8, 1/4, 3/8, 1/2 Uni：1/8, 1/4, 3/8, 1/2
- Seal method Sealant/Gasket seal Face seal Gasket seal（Uni thread） The production of the conventional KJ/KQ2 has been discontinued, and the model has changed to the New KQ2. Grease-free (-X17, -X29, -X39) and rubber material FKM (-X34, -X94) specifications are available with the current models. Click here for the current KJ/KQ2 series catalog.

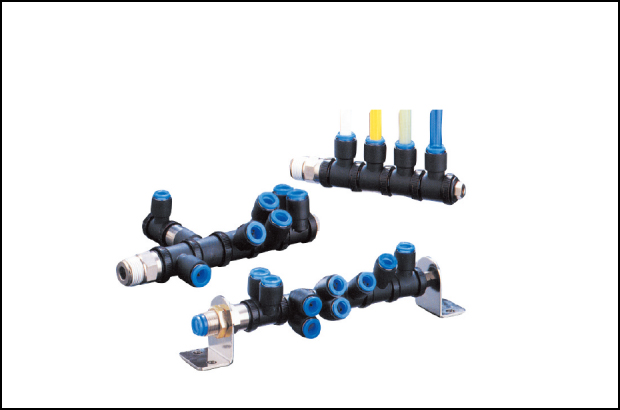

Piping Module KB
- Centralized distribution of supply air.
- One-touch fitting installation without the use of tools.
- Air output direction possible through 360°.

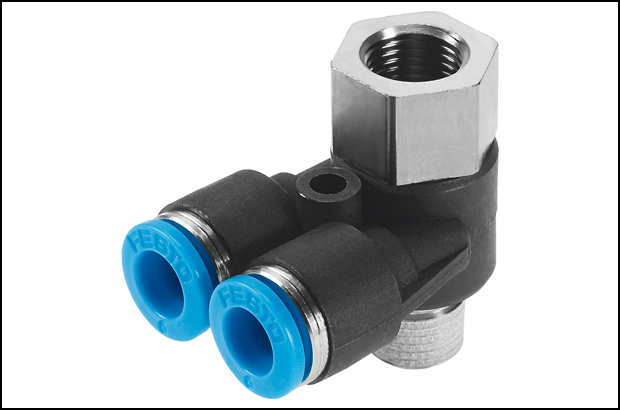

Multiple distributor QSYTF
Swiveling compressed air branch in the riser pipe principle. With twin outlets.
- PBT and nickel-plated brass
- Y-shape
- Rotatable 360°
- Operating media: compressed air, vacuum, (water)
Push in fitting QS
- Standard series
- Wide range of variants: large selection for maximum flexibility in standard applications
- PBT and nickel-plated brass
- Operating media: compressed air, vacuum, (water)

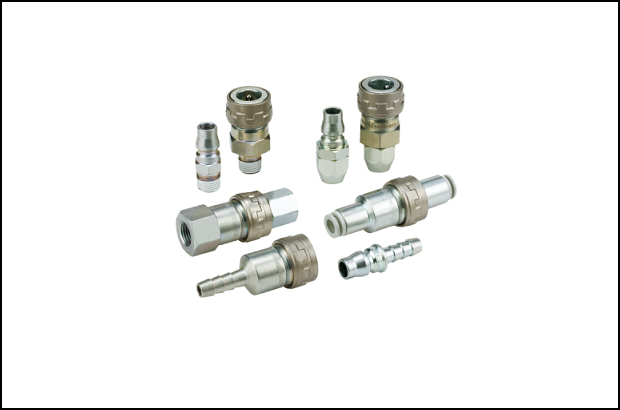

S Couplers KK130
- CV factor: increased by 34%
- Plug insertion force: reduced by 22% (20 N)
- Lightweight: reduced by 14% (12 g)

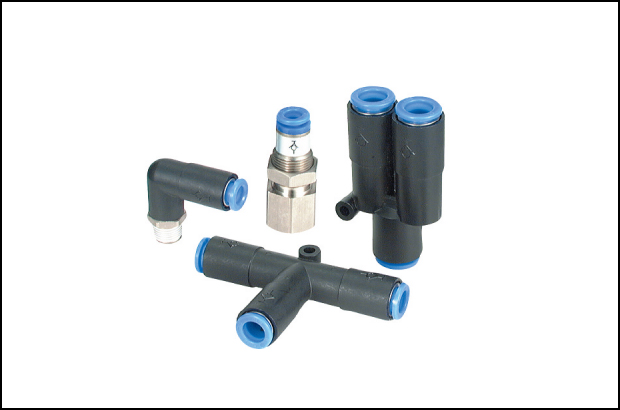

Self-seal Fittings KC
- One-touch installation and removal.
- Built-in self-seal mechanism.
- Air does not exhaust after removal of tubing.
- Copper-free (Electroless nickel plated)

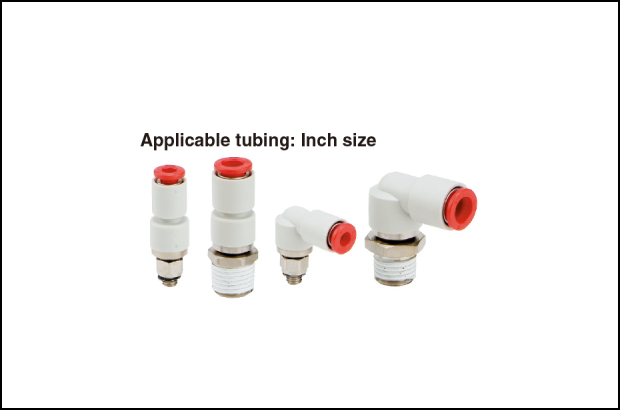

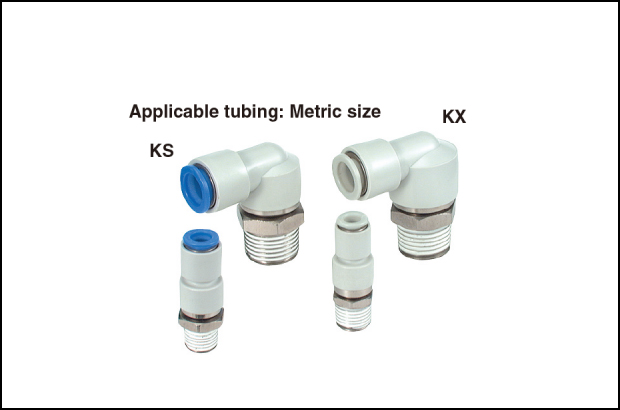

Rotary One-touch Fittings KS/KX
- Applicable to use for oscillating and rotating sections in robots.
- Low torque rotation style rotary One-touch fittings.
- Copper-free (Electroless nickel plated)
Rotary One-touch Fittings KS
- Applicable to use for oscillating and rotating sections in robots.
- Low torque rotation style rotary One-touch fittings.
- Copper-free (Electroless nickel plated)
