Spoked handwheels with solid section

The solid rim of the handwheel allows the easy cleaning thanks to the absence of rear recesses. For this reason, being the technopolymer polypropylene based and the metal components in AISI 304 stainless steel, this version of VRTP. handwheel is designed for applications in food, pharmaceutical and medical fields.

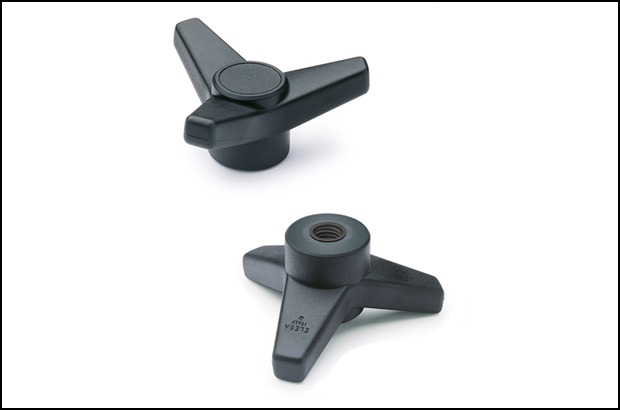

Three-arm knobs

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. VB.639/130: glass-fibre reinforced polypropylene based (PP) technopolymer, black colour, matte finish. This knob has been designed for heavy duty work where the use of a hammer for a firmer clamping action is required.

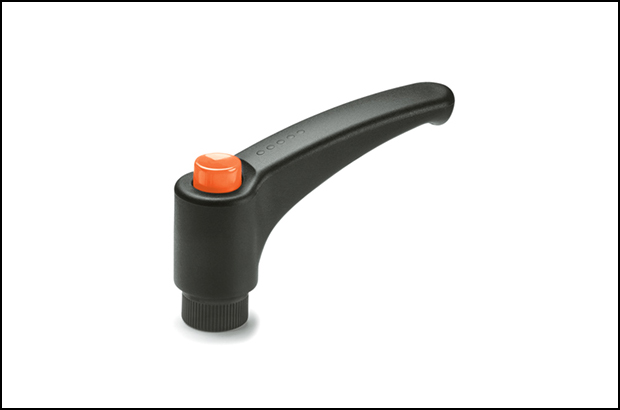

Adjustable handles

Particularly suitable when the lever turning angle is limited owing to lack of space. Compared to other types of adjustable handles with metal retaining screw this solution offers:

  • absolute electric insulation for the operator
  • no visible steel parts subject to rust
  • more comfortable lever release.
  • Adjustable handles are generally used for repetitive clamping operations sometimes with very high-frequency.
  • Therefore, the stress resistance (i.e. the resistance to repeated tightening cycles) of the handle unit is particularly important and, especially, the strength of the toothed element which transmits the tightening force from the handle to the threaded element (boss or stud).
  • In fact, the results of several laboratory tests, perfomed with a special instrument that simulates the most severe use conditions, have shown that e.g. ERX.78 adjustable handle can withstand without yielding more than 100,000 tightening cycles, under the action of a force of 490 N (see graphic).
  • The special glass-fibre reinforced technopolymer enables the ELESA adjustable handles to guarantee stress resistance values which are much higher than the ones generated under normal working conditions.

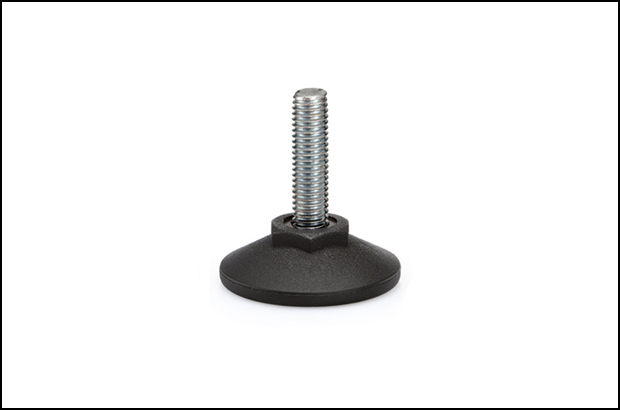

Levelling elements, fixed stem

Polyamide based (PA) technopolymer with adjusting hexagon, black colour, matte finish.

  • LX-SST: AISI 304 stainless steel threaded stem.
  • LX-SST-S: AISI 304 stainless steel threaded stem, base with screwdriver slot.
  • LX-AS-SST: AISI 304 stainless steel threaded stem, base with SBR rubber no-slip disk, supplied assembled to the base.

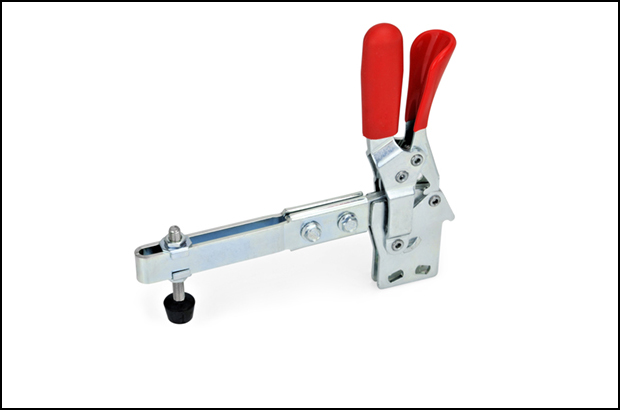

Vertical acting toggle clamps

GN 810.4 toggle clamps are latched in both end positions. In the clamped position, this prevents unintentional opening or opening caused by vibrations; and in the open position, it prevents self-closing of the toggle clamp, such as due to an extended clamping arm. The latching can be disabled with a single hand to allow for opening / closing.

They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U-bar version with two flanged washers (type BL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type BLC.

Type FL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 holders for clamping screws to hold the work piece in place.

Toggle clamps in the U-bar version with two flanged washers (type VL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type VLC.

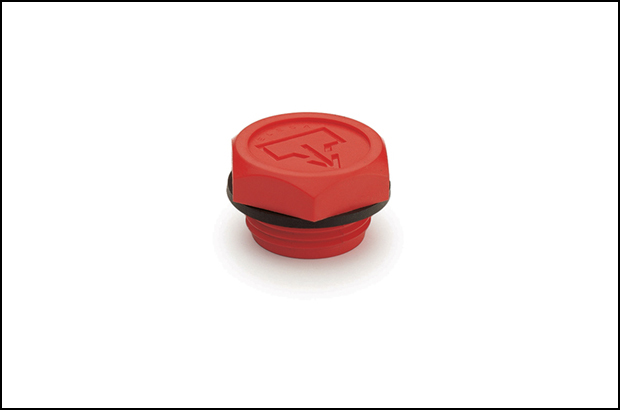

Oil drain plugs

The tightening torque indicated in the table guarantees an optimal tightness, keeping the packing ring in the correct position.

  • Material: Glass-fibre reinforced polyamide based (PA) technopolymer, red colour similar to RAL 3000, matte finish.
  • Flat packing ring: NBR synthetic rubber.
  • Maximum continuous working temperature: 100°C.
  • Graphic symbol "drain": According to DIN regulations.

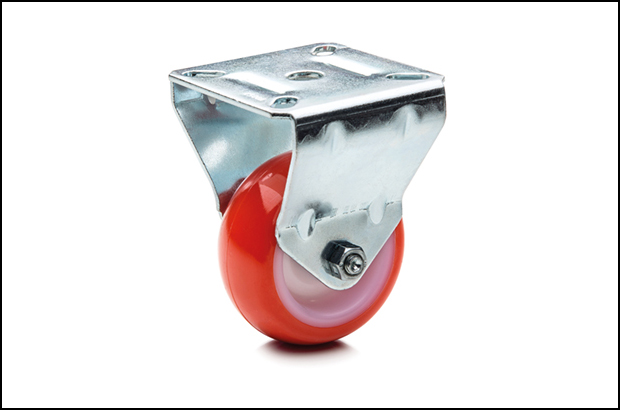

Castors for the general public with steel bracket

Applications: Wheels for the general public, excellent smoothness and elasticity features, high wear and tearing resistance.

Environmental conditions: Suitable for use in industrial and institutional environments, even in the presence of moisture and chemical agents.

The good resistance to frequent cleaning cycles makes it suitable for environments where it is necessary to ensure hygiene.

  • Covering: Injected polyurethan, hardness 55 Shore D.
  • Wheel centre body: Polyamide-based technopolymer (PA).
  • Rolling action: Hub with pass-through hole.
  • Fixed plate bracket: Electrolytically zinc-plated steel sheet bracket.
  • Turning plate bracket: Electrolytically zinc-plated steel sheet bracket. The presence of a double ball race and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.
  • Front-actuated brake: Total brake that locks the wheel and bracket rotation. The optimised dimensions and the retractable pedal ensure minimal space occupied and maximum actuation ease.
  • Standard executionsPBL: fixed plate bracket, without brake.
  • Standard executionsSBL: turning plate bracket, without brake.
  • Standard executionsSBF: turning plate bracket, with brake.
  • Standard executionsCBL: turning plate bracket and threaded centre pin, without brake.
  • Standard executionsCBF: turning plate bracket and threaded centre pin, with brake.
  • Standard executionsFBL: turning plate bracket and centre pass-through hole, without brake.
  • Standard executionsFBF: turning plate bracket and centre pass-through hole, with brake.

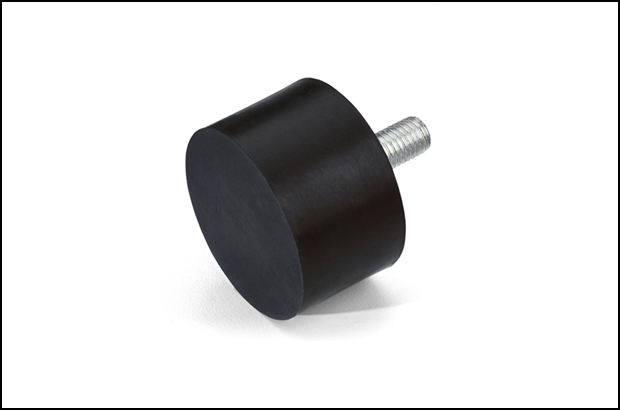

Rubber buffers

The vibration-damping elements have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines which can cause: malfunctioning and reduction of the machine lifespan and/or of the adjacent ones; damage to health; noise. Load diagrams for each single code are available on request.

  • Base: DVA: zinc-plated steel.
  • Base: DVA-SST: AISI 304 stainless steel.
  • Vibration-damping body
  • Natural rubber NR, black colour.
  • DVA: hardness 40, 55, 70 Shore A ±5.
  • DVA-SST: hardness 55 Shore A ±5.
  • Standard executions
  • DVA.4: zinc-plated steel threaded stud.
  • DVA.4-SST: AISI 304 stainless steel threaded stud.
  • DVA.5: zinc-plated steel boss, threaded blind hole.
  • DVA.5-SST: AISI 304 stainless steel boss, threaded blind hole.

Levelling feet

The specified load in the table of the levelling feet GN 342.2 is a recommendation up to which the damping element can be permanently subjected. This static load equals a thrust on the area of 0.4 N/mm2 at which the damping material reaches its optimum dynamic damping ability. This also takes into account an additional load up to 0.6 N/mm2 in the event of a dynamic load. Levelling feet GN 342.1 cannot be disassembled.

  • Type SV: with damping element
  • Steel: Tensile strength class 5.8
  • Steel: zinc plated, blue passivated
  • Damping element Elastomer (PUR)
  • Sylomer SR 450-12
  • anti-slip, glued
  • grey
  • oil resistant
  • Operating range form -30 0C up to 700C
  • Hexagon nut ISO 4032 Steel zinc plated, blue passivated

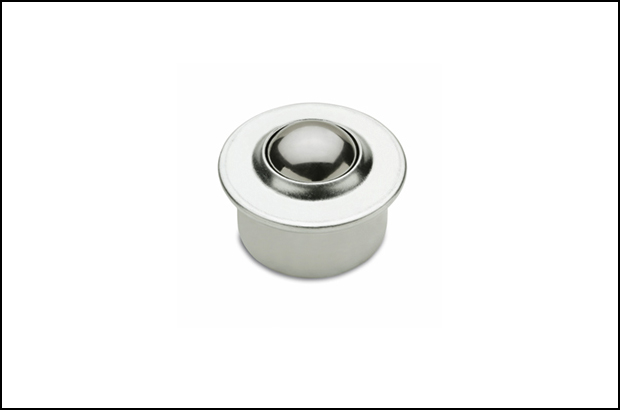

Ball transfer units

Ball transfer units GN 509 are used on conveyer tracks. They assist a linear or rotary movement of heavy loads on conveyer track.

  • Housing sheet steel SBL
  • zinc plated, blue passivated
  • Ball Steel, blank
  • Housing sheet steel SKU
  • zinc plated, blue passivated
  • Ball Plastic (Polyacetal POM)
  • Housing sheet steel SNI
  • zinc plated, blue passivated
  • Ball Stainless Steel AISI 420C
  • Housing sheet Stainless Steel NNI
  • Stainless Steel AISI 304 / AISI 420
  • Ball Stainless Steel AISI 420C
