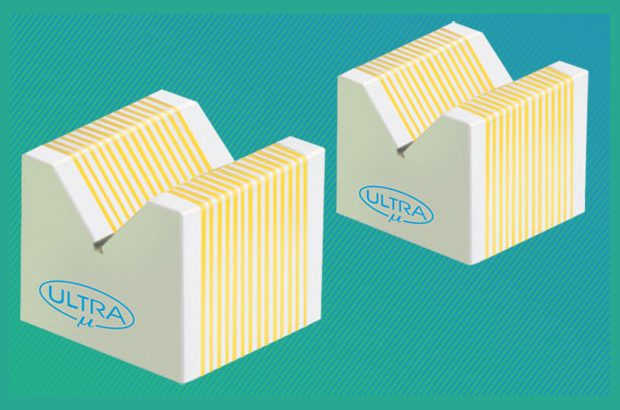

Magnetic "V" Blocks
All Sides Are Hardened & Ground.
- Used for grinding, light Milling, Drilling & inspection of round & square Jobs.
- Uniform and Strong magnetic pull to all three magnetic surfaces, Top, Bottom & V Faces.
- Easy ON - OFF facility.

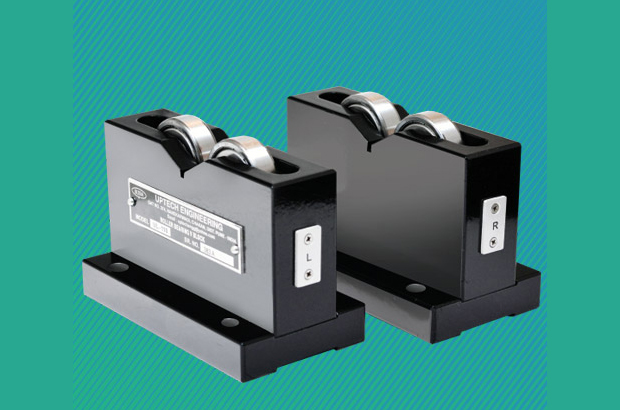

Roller Bearing "V" Blocks
- Used for checking heavy and odd shaped round jobs.
- Perfectly matched pair. Accuracy : Paralality 12 micron for all series.
- Included angle of rollers is 900.
- Standard bearings are used which are replaceable.
- Jobs don't get damaged due to bearing on top.
- Special sizes suitable for different diameter manufactured on request
V Type Transfer Blocks
- Used as an accessory for magnetic chuck to clamp thin & odd shape jobs.
- Simplest method of extending the magnetic flux of magnetic chuck with parallel poles to support the job.
- Maximum flux transformation when placed parallel to pole lines.
- 900 V provided for round job.
- Perfectly ground within 5 micron & supplied in matched pair.

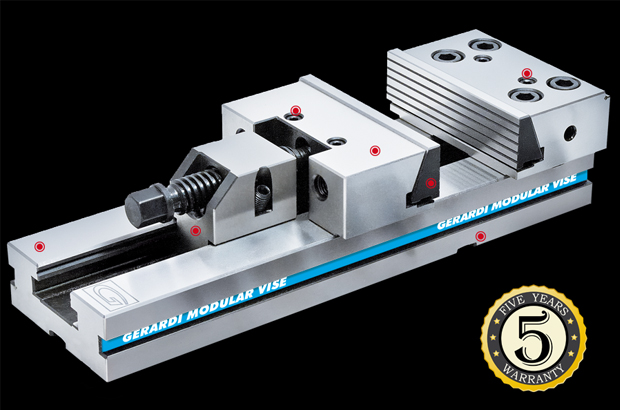

Geradi Modular Vise
High alloyed quality resistance steel, case hardened HRC 60 ±2, is used in manufacturing all the Gerardi vises and accessories in order to give maximum rigidity, high performances and no wear. As evidence we give 5 YEARS WARRANTY on all the vises and mechanical components.
- All this is possible thanks to the high precision of the vise particularly as regards:
- the base high;
- the alignment with longitudinal key-nuts with respect to the fixed jaw;
- the perpendicularity of the fixed jaw with respect to the vise base and the parallelism of the base top and bottom surfaces.
- Those features allows us to solve the most varied and complicated problems of clamping in a few seconds with the use of more vises.

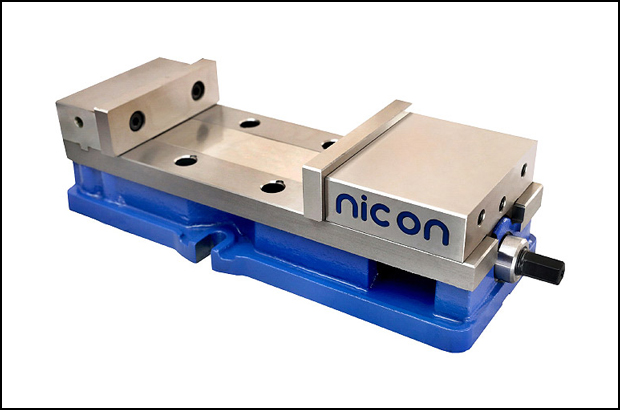

LOCK DOWN JAW MACHINE VICE
- Lock down Jaw vice Designed for Precision Milling machines and CNC Machining Centres.
- Sealed bearing system induces clamping pressure and increases bearing life.
- Bearing part is stronger & more durable then Our previous designed vices.
- Accuracy in parallelism & squareness within 0.02/100 mm.
- Hardened bed and jaws maintain accuracy for long time.
- Ductile Cast iron body.
- No work piece tilt after clamping.
- All parts interchangeablea nd available as spares.
- Same bed hieght and Re-designed nut with lighter weight.
- Tenons and tenon slots provided for effortless truing of vice on machine table.
- High clamping force can be achieve by effortless handle
- movement which eliminates hammering on handle.
- Available with Swivel base also.
- TANDARD ACCESSORIES: 1 Work Stopper, 1 Pair of standard 16mm positioning key nuts, Ajdustable Handle

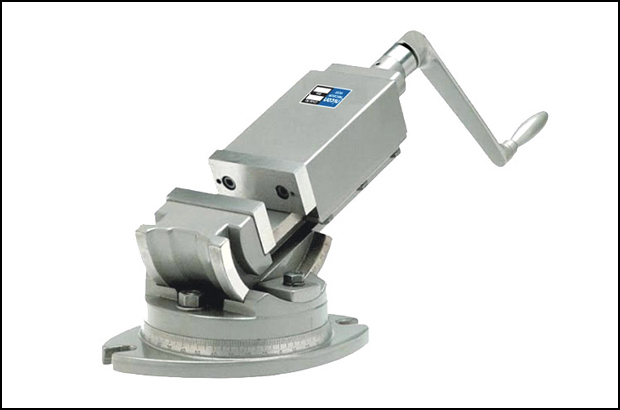

TILTING & SWIVELING MACHINE VICE
- Angular Machine Vices are ideal for applications where in the workpiece requires machining at an angle.
- Angular adjustment is achieved via the angular slide that can be set to any desired angle.
- The fully graduated 3600 swivel base allows the vice to be set at any angle along the vertical axis.
- These vices are manufactured from close-grained hi-tensile seasoned cast iron.
- Unbreakable steel crank handle.
- Use of hi-tensile grade fasteners provides strength and rigidity to these vices.
- Hardened and ground jaws.
- A milled slot in the vice base helps in the accurate location of the vice on the machine table using rectangular locating nuts.
- Accuracy in parallelism of jaws 0.02/100mm.
- "Hold Down" slots allow for secure clamping of the vice on the machine table.

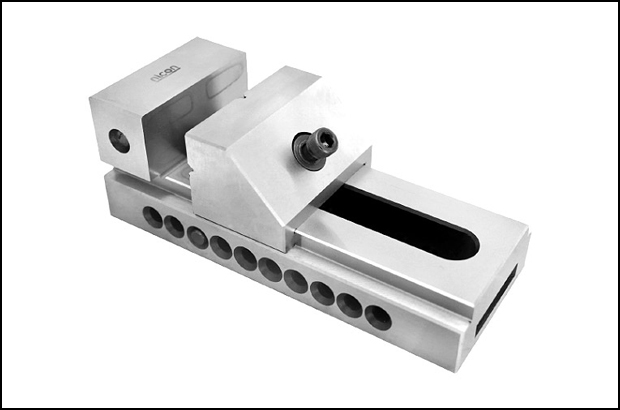

PRECISION TOOL MAKER`S VICE
- These vices are mainly used with precision grinding, milling machines, engraving, and jig boring operations.
- Ground & square all over the vice may be mounted on its base, sides or end.
- The moving jaw has two vees ground into its face, one vertical the other horizontal to aid gripping round components.
- The rapid positioning notches allow the vice to be locked in any position by means on an Allen key provided with the vice.

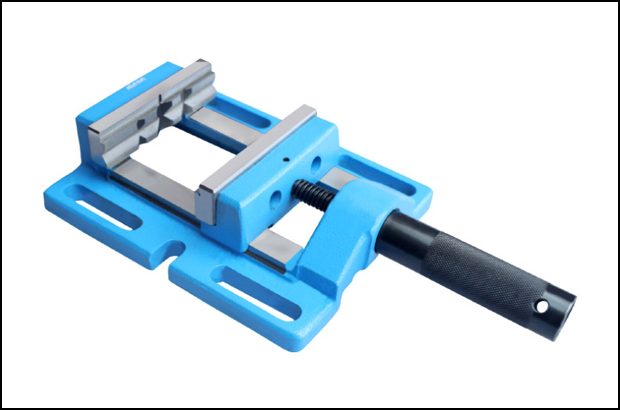

DRILL PRESS VICE (UNIGRIP)
- Unbreakable alloy Steel construction with ground surfaces helps the smooth lateral movement of movable jaws.
- Rugged design provides precision and powerful clamping for drilling, tapping and reaming operations.
- The base is slotted enabling the vice to be bolted to drill press tables, assisting in quick and accurate positioning.
- Longitudinal and transversal prisms in the fixed jaw allow for firm gripping of round jobs of different sizes both horizontally and vertically.
- Special seat in jaws facilitates retaining of flat workpieces.
- Vices are equipped with a convenient well grip mechanism.
- Spindle moves inside the hollow handgrip allowing the vice to be used at a location away from the table edge, this feature increases the scope of application of this range of vices.

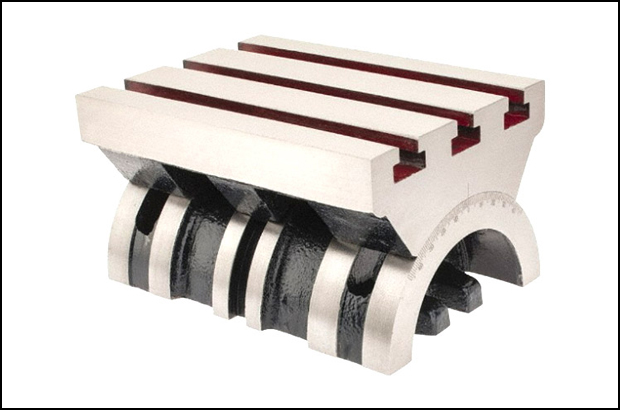

TILTING TABLE
- Heavy and sturdy Machined construction.
- Range 45 Degree each way from Vertical.
- Locking action by 2 clamping screws on each end.
- 3 Machined “T” slots and precise ground Table Surface.

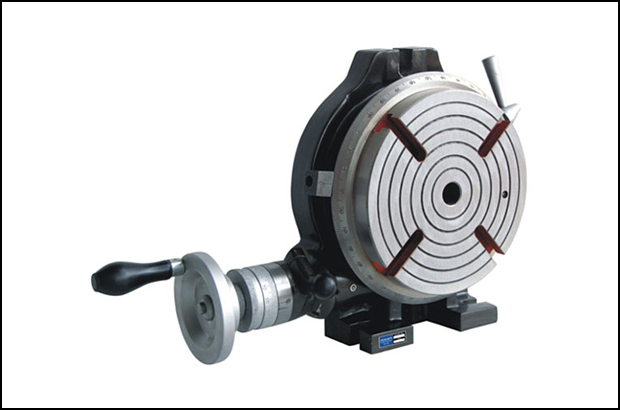

ROTARY MILLING TABLE
- Rotary table or circular milling attachment is special work holding device, which is bolted on the top of the machine table.
- It provides rotary motion to the table.
- The attachment consists of a circular table having T-Slots mounted on the graduated base.
- The circular table may be rotated by hand, and in a special case by power by linking the rotary table driving mechanism with the machine lead screw.
- The Table & Body manufactured from close grain shock resisting cast iron.
- Provided with quick & precise disengagement of the worm drive.
- Efficient lock provided.
- End play in worm shaft is adjustable.
- An eccentric sleeve with thrust Bearing races in the worm shaft.
- Provision for fine zero adjustments when setting workpiece.
- Works as an index center in the vertical position as well as conventional Rotary Table graduated 360º Indexing Plate is provided to enable the user to convert quickly to use indexing plates for a fast setting.
- Direct reading to 2 minutes for size 6", 8" & 10" on hand wheel scale.
- Direct reading to 1 minute for size 12", 15",18" & 20" in hand wheel scale.
- High accuracy, easy reading of all dies clear & functional arrangement of all operating elements.

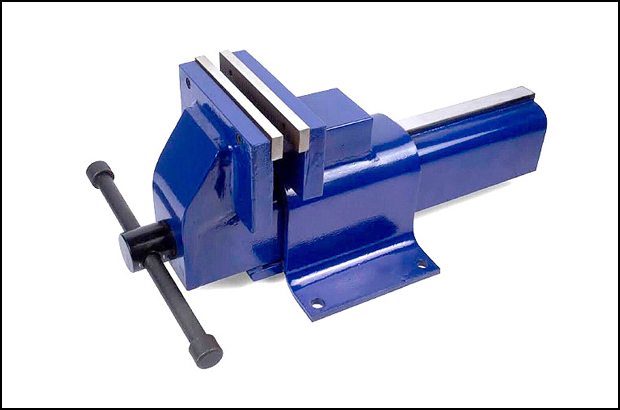

PROFESSIONAL FABRICATED BENCH VICE
- All steel construction professional vices are built to withstand the shocks of hammering, chipping and other tough applications.
- Each vice has an integrated anvil for shaping and beating, together with an extra heavy-duty sliding jaw and large-diameter screw.
- Hardened and knurled steel jaws 50 ± 5 HRC for non-slip grip. Safety stopper provided at the end of slide prevents slide from fall during usage.
CLAMPS & CLAMPING ELEMENTS

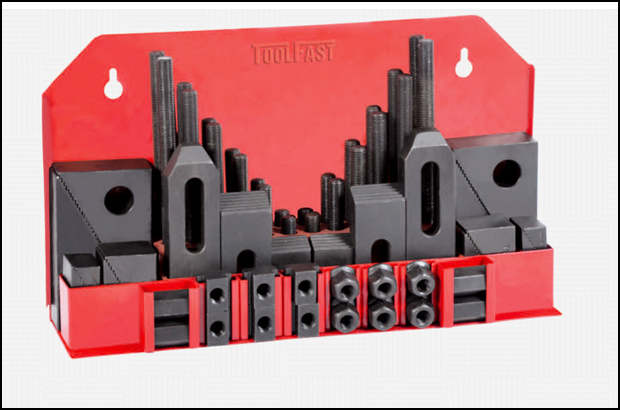

'TOOLFAST Clamping Kit - 58 piece is available in an attractive powder coated metallic rack which can be hanged on machines or a wall or kept on a table. Each kit consists of all important clamping elements required to clamp a variety of work pieces. Following table shows the contents of each madel of clamping kit suitable for different T-Slot sizes. All the items of clamping kit are taken from our range of products given in this catalogue.
