Motorized height measuring instruments 1D
Motorized measurement means safe measurement without operator influence. A motorized height measuring instrument with outstanding accuracy and reliability due to the optical incremental measurement system with the double reader head.

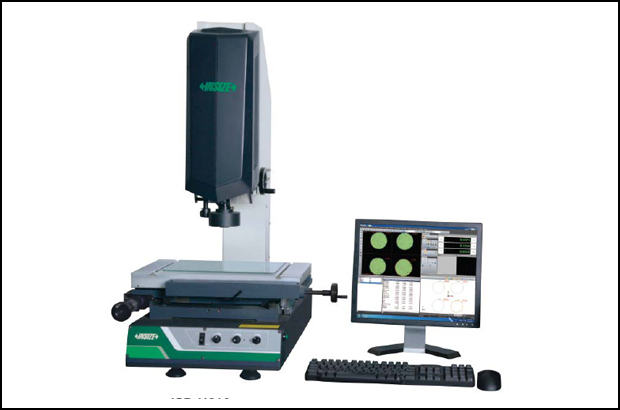

High Defination Vision Measuring Systems
- High-defintion image
- Large view field
- Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed

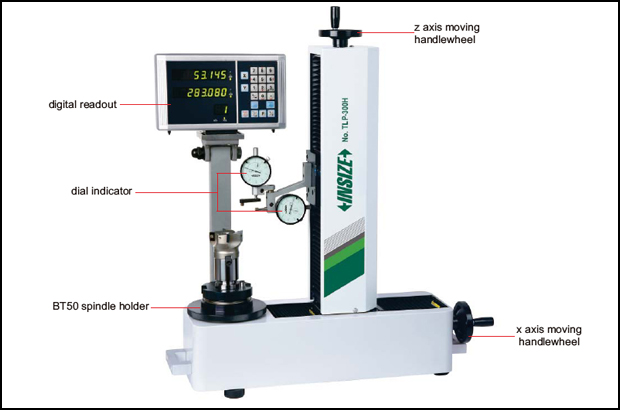

Tool Presetter
- Absolute linear scales, Zero Setting is not needed after power on and off

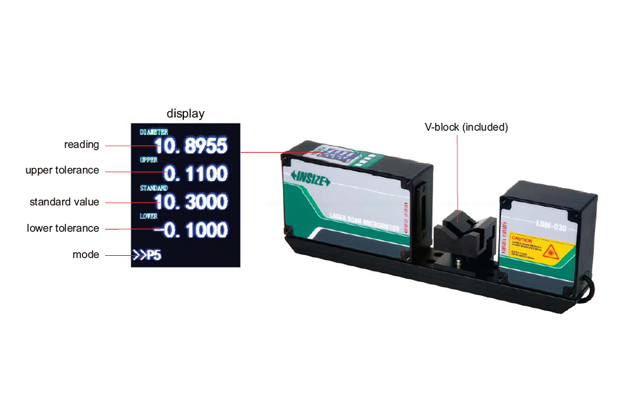

Laser Scan Micrometer
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
- Measure external diameter, ellipticity, run-out, maximum diameter of tools, etc.
- Can be used for transparent or non transparent workpieces
- Tolerance measurement
- Online or offline measurement
- Connected with computer and PLC

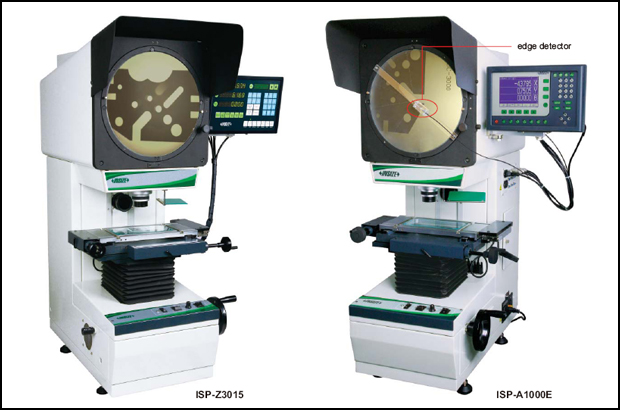

Profile Projector
- Touch Buttons
- USB Data output to Excel and CAD
- Show Diagram

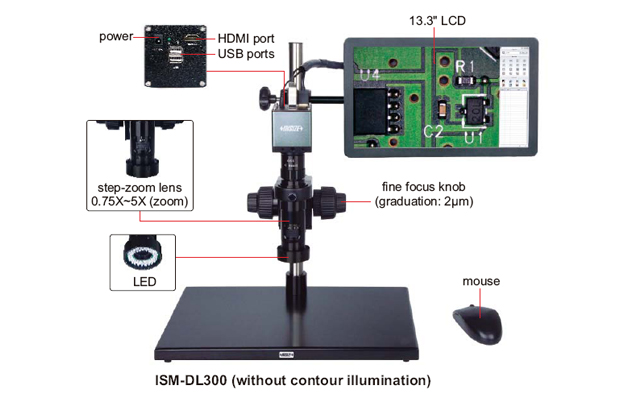

Digital Measuring Microscope
- 1080P high-definition image
- Built-in software without computer, operated by mouse
- Take pictures, save to USB flash disk
- Measurement results can be sent to Excel
- Automatic white balance and exposure
- Brightness, contrast ratio, gain are adjustable

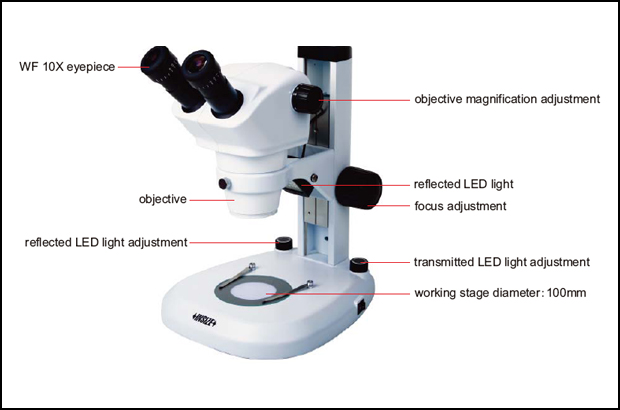

Zoom Stereo Microscope
- Code: ISM-ZS50, ISM-ZS50T
- Optical tube: binocular, trinocular
- Eyepiece (wide field): 10X (view field: 022mm)
- Objective: 0.8X~5X (zoom)
- Zoom ratio: 1:6.3
- Pupil distance: 55~75mm (adjustable)
- Diopter adjustment: ‡5 diopter (two eyepieces)
- Working distance of obiective: 115mm
- Max. workpiece height: 75mm
- Illumination: adjustable reflected and transmitted LED light
- Power supply: 110/220V. 50/60HZ
- Dimension (LXWxH): 290×260×480mm
- Weight: 4.9 kg
