Coating Thickness Gage
- I Magnetic induction probe (FE) measures the thickness of non-magnetic coating on magnetic substrate.
- Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel)
- Coating: zinc, copper, chrome, tin, plastic, powder, paint (not for nickel)
- Eddy current probe (NFE) measures the thickness of non-conductive coating on non-magnetic substrate.
- Substrate: copper, aluminum, Zinc, non-magnetic stainless steel
- Coating: plastic, powder, paint, anodizing
- Tolerance measurement
- Automatic power off

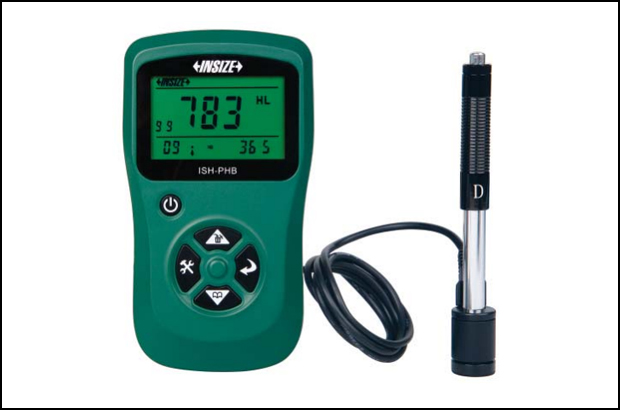

Portable Leeb Hardnes Tester
- Based on Leeb (HLD), converted to Vickers (HV),
- Brinell (HB), Rockwell (HRC and HRB),
- Shore (HS) and tensile strength (MPa)
- Memory of 99 measurement values for browsing
- Set measurement times (1~9) to have average value
- Connected with printer via bluetooth
- Automatic power off, according to ASTM A 956

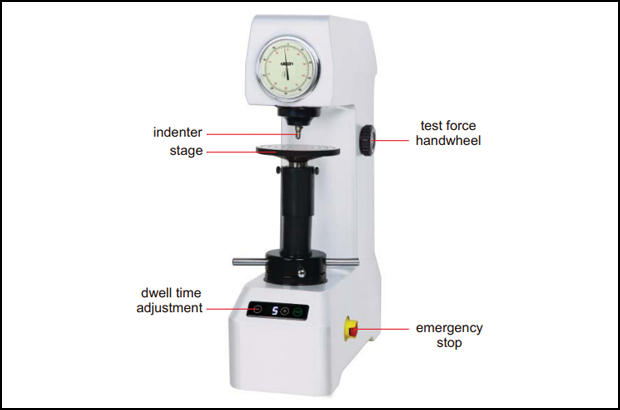

Automatic Rockwell Hardness Tester
- Hardness scale: HRA, HRB, HRC. HRD, HRF, HRG
- Preliminary test force: 98N
- Test force: 588N. 980N_ 1471N
- Display: analogue
- Stage elevation: manual
- Load control: autqmatic(load/dwell/unload)
- Load dwell time: 1-60 second
- Min. reading: 0 5HR
- Max. workpiece height: 170mm
- Max. testing width: 128mm (from the center of indenter to the wall of main body)
- Power supply: 220V. 50/60H7**
- Dimension: 520×225×640mm
- Weight: 65kg

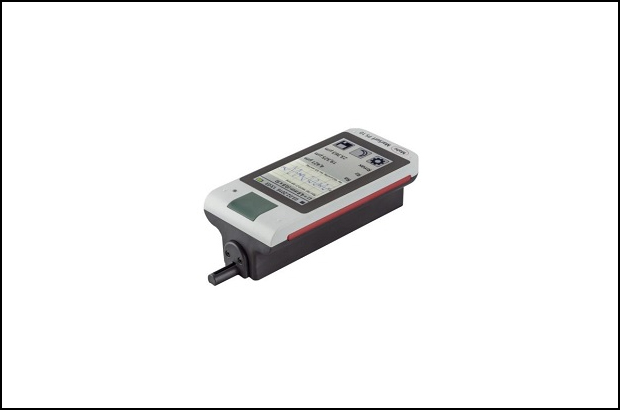

Surface Roughness Tester
Surface roughness measuring unit for mobile use. Using a smartphone-like 4.3 in TFT touch screen display. The PS10 roughness tester measures 31 roughness parameters, has a removable drive and provides lab level performance on the shop floor
- Removable drive, touch display and easy to use
- 6910230: PS10 Kit with 2 um Probe Tip or 6910232: PS10 Kit with 5 um Probe Tip
- Compact roughness measuring instrument for mobile use
- Simple and intuitive to use: As easy to use as a smart phone
- Large, illuminated 4.3" TFT touch display
- Adjustable display
- Start button also serves as the Home button for direct access to the start screen
- Data backup as TXT, X3P or PDF file
- Mains-independent operation: Over 1200 measurements without having to recharge the instrument
- An all-in-one solution. Small and lightweight (approx. 500 g)
- Instrument flexibility: Removable drive unit
- All the measuring positions you need: horizontal, vertical, upside down
- 31 surface parameters offer the same range of functions as a laboratory instrument.
- Error-free operation thanks to an integrated, removable roughness standard
- Quick access to your frequently used functions via the Favorites list in the display
- Very short activation time: results available within seconds
- Automatic cutoff selection, so even non-specialists can be sure of getting the correct measuring results

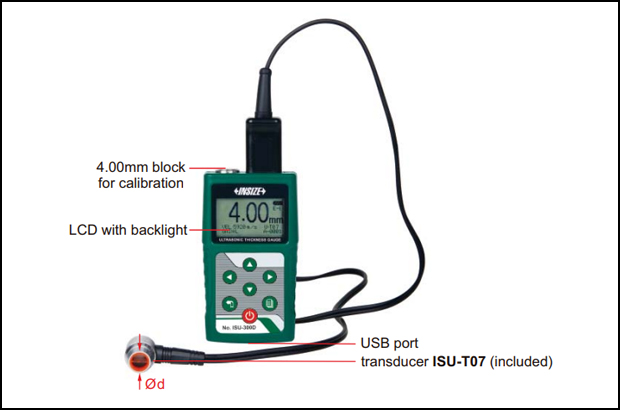

Ultrasonic Thickness Gage
- Two measuring modes, Echo-Echo (E-E) and Transmit-Echo(T-E):
- E is applicable for non-metallic coating (such as paint, plastic resin, etc.) on metal substrates, can penetrate coating and measure the thickness of substrates
- T-E is to measure the thickness of material without coating, such as metal, plastic, glass, nylon, resin, ceramics, ice, etc. Tolerance measurement
- Average calculation of maximum 9 readings
- Data can be input to Excel and Word as keyboard signal

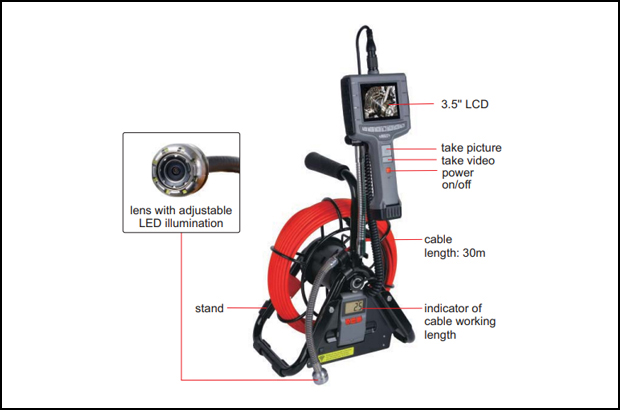

Pipe Videoscope
- Lens: Diameter: 28mm
- Lens: Dust / Waterproof: IP68
- Lens: pixel: 0.3m
- Lens: Resolution: 640 x 480
- Lens: Frame: 30fps
- Cable: Length: 30m
- Cable: Dust / Waterproof: 28mm
- Cable: type: Semi Rigid
- Main Unit: Function: Take picture and video
- Main Unit: File Format: Picture: JPG, Video: ASF
- Main Unit: Image Process: Mirror, Rotate, Zoom (1.5X, 2X)
- Main Unit: Memory: 4G SD Card
- Main Unit: Output: TV, USB
- Main Unit: Power Supply: 4 x AA Battries
- Weight: 5 kg

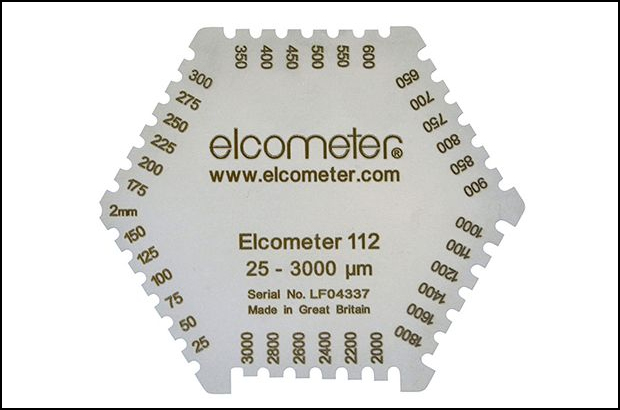

Hexagonal Wet Film Combs
These hexagonal precision formed stainless steel wet film combs are long lasting, reusable and supplied in a range of thicknesses measuring up to 3,000μm (120mils). These six sided combs vary in size, giving either 24 or 36 measurement steps, depending upon the comb, thus providing increased accuracy.

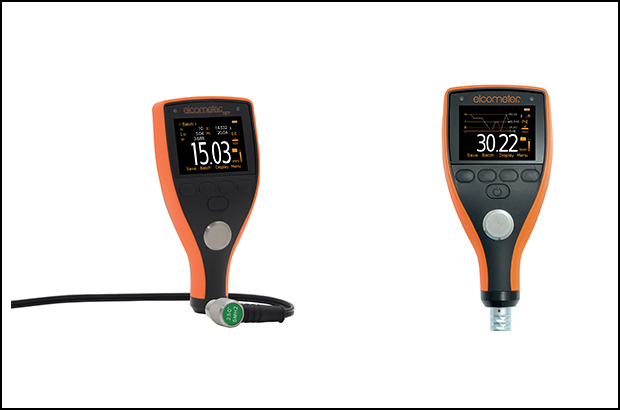

Ultrasonic Material Thickness Gauges
The Elcometer Ultrasonic Material Thickness Gauges have all the features and functionality necessary for measuring material thickness and velocity on virtually any material - for a wide range of applications.

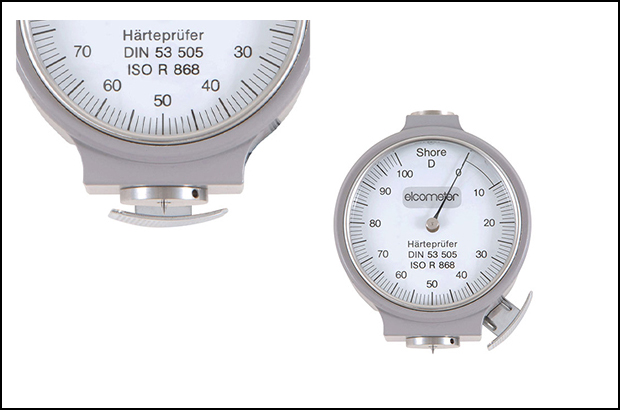

Shore Durometer
A round point indents the material under a fixed force spring and the hardness is displayed on the dial in Shore Hardness Units. The instrument can be used either hand-held or fitted to an optional stand for increased repeatability. Note: The Elcometer 3120 range of Shore Durometers encompasses a number of hardness values. Please refer to the table below.

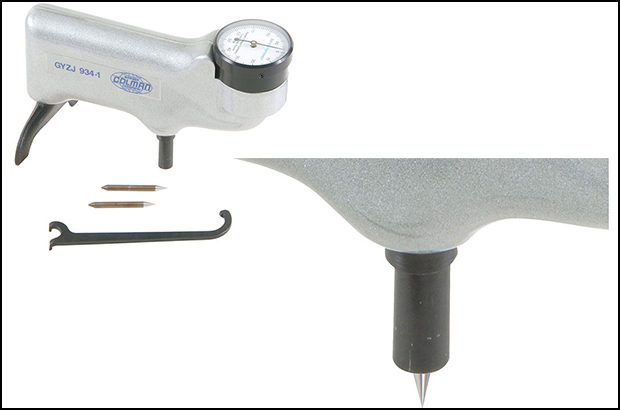

Barcol Impressor Hardness Tester
Making sure the indenter point is perpendicular to the surface being tested, the instrument is placed onto the sample and light pressure is exerted against the instrument driving the spring-loaded indenter point into the material and the hardness reading is instantly indicated on the dial. No waiting, pre-loading or separate measurements are required.
There are three models in the range:
- Elcometer 3101/1 Model 934-1: For soft metals such as aluminium and its alloys, brass, copper, and some of the harder plastics and glass fibre. Approximate range 25 to 150 Brinell (10 mm ball, 500 kg load). This unit meets ASTM Standard D2583.
- Elcometer 3101/2 Model 935: For softer plastics and very soft metals.
- Elcometer 3101/3 Model 936: For extremely soft materials such as lead, linoleum and leather.
- To ensure the Barcol Hardness Tester is in calibration, a range of Standard Test Discs is available. Please select the appropriate Test Disc from the list of Accessories to supplement the disc supplied.
- All results are recorded in Barcol Units (BU).
