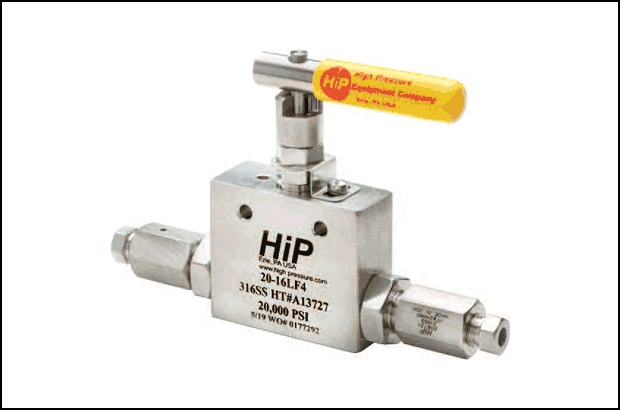

20,000 PSI MEDIUM PRESSURE VALVES
- Non-rotating slotted stem design (standard for LF4, LF6 and LF9)
- Packing below stem threads
- Positive gland lock device
- Tube sizes 1/4" through 11/2"
- Type 316 ss high tensile bodies
- No stem adjustment needed - LF4, LF6 and LF9
- Black T-handles or choice of 4 colors - LF4, LF6 and LF9
- 316 ss handles LF12, LF16 and LF24

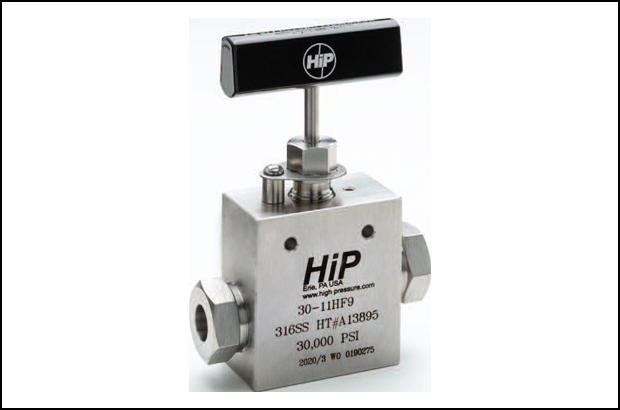

30,000 PSI HIGH PRESSURE VALVES
- Non-rotating slotted stem design (standard for HF2, HF4, HF6 and HF9)
- Packing below stem threads
- Type 316 ss high tensile bodies
- Positive gland lock device
- No stem adjustment needed
- Black T-handles or choice of 4 colors
- Tube sizes 1/8" through 1"

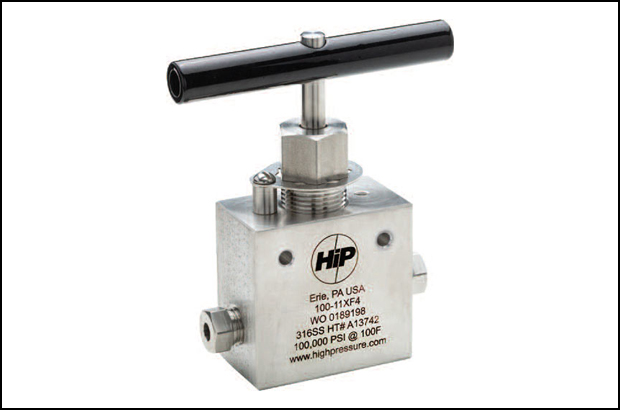

ULTRA HIGH PRESSURE VALVES
- Non-rotating slotted stem design
- Packing below stem threads
- Type 316 ss high tensile bodies
- Positive gland lock device
- No stem adjustment needed
- Black T-handles
- Tube sizes 1/4" through 9/16"
10,000, 15,000 AND 20,000 PSI SERVICE
High Pressure Equipment offers two styles of ball valves (free floating and trunion) to provide effective shut-off of liquid or gas flow. Two-way ball valves offer complete shut-off with a convenient 1/4 turn. Valve actuators are available for remote control of HiP ball valves.
Virtually all metal components are stainless steel to insure consistent operation under even the most severe applications. Teflon packing provides reliable leak-free service up to 4000F. Other packings, including Polypak and Grafoil are available upon request.

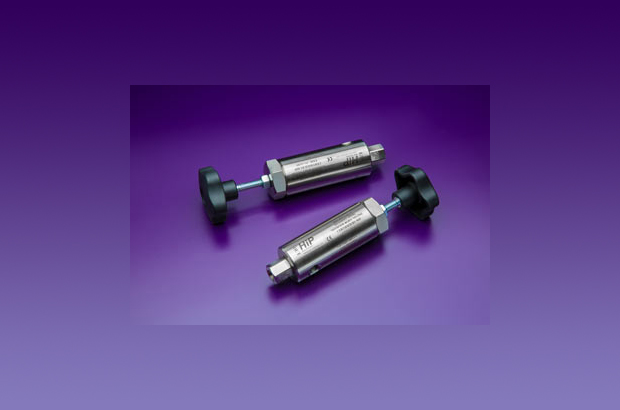

METAL SEAT RELIEF VALVES
- Relief valves are offered in pressure ranges: 1,500 through 60,000 psi.
- Standard materialsinclude 316 stainless steel bodies and removable seat glands with 17-4PH stainless steel removable stem and stem seats. Standard O-ring material on the stem is Viton Valves may be used up to 4000F.
- Inlet connections are for 9/16" O.D. tubing (HF9) with adapters for other sizes available. Outlet connections are 1/2" NPT. These valves are not recommended for use below 1,500 psi, and are not readily adjustable in the field without proper test equipment. Pressure settings are made at the factory and valves are tagged accordingly.
- To order, simply specify catalog number and set pressure. See table below.
SOUR OIL & GAS VALVES
High Pressure Equipment Company has developed a complete line of valves and affiliated components specifically for the unique requirements of the oil and gas industry. We offer valves, fittings and tubing for use with sour oil and gas (H2S) in a 10,000 psi, 20,000 psi and 30,000 psi series. Our "SGS" products are constructed of annealed 316 stainless steel and meet or exceed all requirements of NACE MR0175 and the American Petroleum Institute. For those applications where H2S is not present, our standard line of valves, fittings and tubing will accommodate pressures to 150,000 psi.
HASTELLOY & OTHER EXOTIC MATERIAL PRODUCTS IN STOCK
We know that some oil and gas applications demand material performance beyond our "SGS" stainless steel products. In an effort to provide our customers with their material of choice and meet tight shipping deadlines, we maintain an inventory of Hastelloy and Monel valves and fittings.
- 1/4, 3/8 & 9/16" O.D. tube connections
- 10,000, 20,000 & 30,000 psi series
- Vee and regulating stem types
- Annealed 316 stainless steel construction
- Meet or exceed requirements of NACE MR0175
