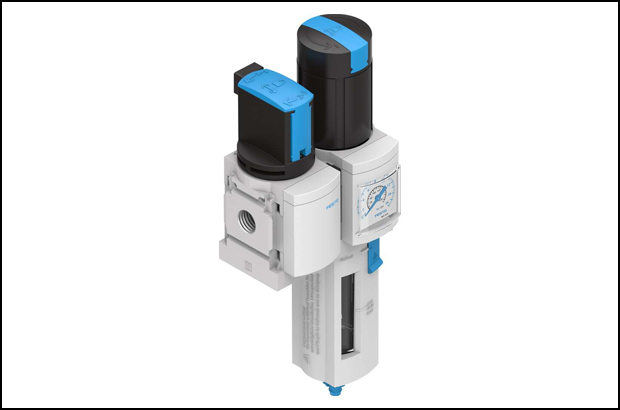

Air preparation combination unit | MSB4-1/4:C3J3-WP
- Size : 4
- Series : MS
- Actuator lock : Rotary knob with detent can be closed with accessories
- Mounting position : Vertical +/- 5°
- Grade of filtration : 5 µm
- Condensate drain : Manually rotating
- Structural design : Shut off valve Filter regulator with pressure gauge
- Controller function : Outlet pressure constant With primary pressure compensation, With secondary exhausting, With return flow function
- Bowl guard : Plastic bowl guard
- Symbol : 991755
- Pressure gauge : with pressure gauge
- Operating pressure : 0.8 bar ... 14 bar
- Pressure regulation range : 0.5 bar ... 12 bar
- Standard nominal flow rate : 950 l/min
- Operating medium : Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot media : Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC) : 2 - Moderate corrosion stress
- LABS conformity : VDMA24364-B1/B2-L
- Storage temperature : -10 °C ... 60 °C
- For use in the food industry : See supplementary material information
- Air quality class at the output : Compressed air as per ISO 8573-1:2010 [6:4:4]
- Temperature of medium : -10 °C ... 60 °C
- Ambient temperature : -10 °C ... 60 °C
- Product weight : 1300 g
- Type of mounting : With accessories
- Pneumatic connection 1 : G1/4
- Pneumatic connection 2 : G¼
- Pneumatic connection 3 : G1/4
- Housing material : Die-cast aluminum
- Material of bowl : PC

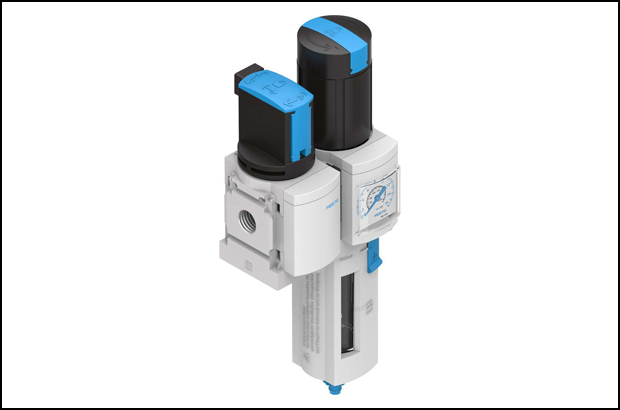

Air preparation combination unit | MSB4-1/4:C3J4-WP
- Size : 4
- Series : MS
- Actuator lock : Rotary knob with detent can be closed with accessories
- Mounting position : Vertical +/- 5°
- Grade of filtration : 5 µm
- Condensate drain : Fully automatic
- Structural design : Shut off valve Filter regulator with pressure gauge
- Controller function : Outlet pressure constant With primary pressure compensation, With secondary exhausting, With return flow function
- Bowl guard : Plastic bowl guard
- Symbol : 991756
- Pressure gauge : with pressure gauge
- Operating pressure : 2 bar ... 12 bar
- Pressure regulation range : 0.5 bar ... 12 bar
- Standard nominal flow rate : 950 l/min
- Operating medium : Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot media : Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC) : 2 - Moderate corrosion stress
- LABS conformity : VDMA24364-B1/B2-L
- Storage temperature : -10 °C ... 60 °C
- For use in the food industry : See supplementary material information
- Air quality class at the output : Compressed air as per ISO 8573-1:2010 [6:4:4]
- Temperature of medium : 5 °C ... 60 °C
- Ambient temperature : 5 °C ... 60 °C
- Product weight : 1300 g
- Type of mounting : With accessories
- Pneumatic connection 1 : G1/4
- Pneumatic connection 2 : G¼
- Pneumatic connection 3 : G1/4
- Housing material : Die-cast aluminum
- Material of bowl : PC
Air preparation combination unit | MSB4-1/4:C3J2-WP
- Size : 4
- Series : MS
- Actuator lock : Rotary knob with detent can be closed with accessories
- Mounting position : Vertical +/- 5°
- Grade of filtration : 40 µm
- Condensate drain : Fully automatic
- Structural design : Shut off valve, Filter regulator with pressure gauge
- Controller function : Outlet pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function
- Bowl guard : Plastic bowl guard
- Symbol : 991756
- Pressure gauge : with pressure gauge
- Operating pressure : 2 bar ... 12 bar
- Pressure regulation range : 0.5 bar ... 12 bar
- Standard nominal flow rate : 1000 l/min
- Operating medium : Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas
- Information on operating and pilot media : Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC) : 2 - Moderate corrosion stress
- LABS conformity : VDMA24364-B1/B2-L
- Storage temperature : -10 °C ... 60 °C
- For use in the food industry : See supplementary material information
- Air quality class at the output : Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium : 5 °C ... 60 °C
- Ambient temperature : 5 °C ... 60 °C
- Product weight : 1300 g
- Type of mounting : With accessories
- Pneumatic connection 1 : G1/4
- Pneumatic connection 2 : G¼
- Pneumatic connection 3 : G1/4
- Housing material : Die-cast aluminum
- Material of bowl : PC

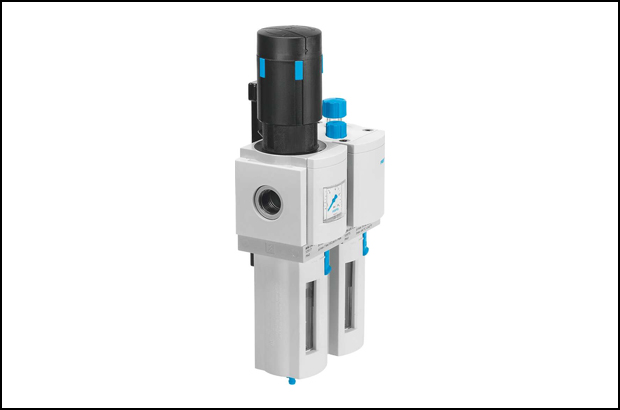

Air preparation combination unit MSB4-FRC
With the preconfigured MS series, Festo provides a complete system for compressed air preparation – for both standard applications and application-specific solutions with the highest quality requirements.
- Width dimension 40 mm
- Compressed air filter, regulator, and lubricator functions in a single unit
- High flow rate and highly efficient in removing contaminants
- Good control characteristics with minimal pressure hysteresis

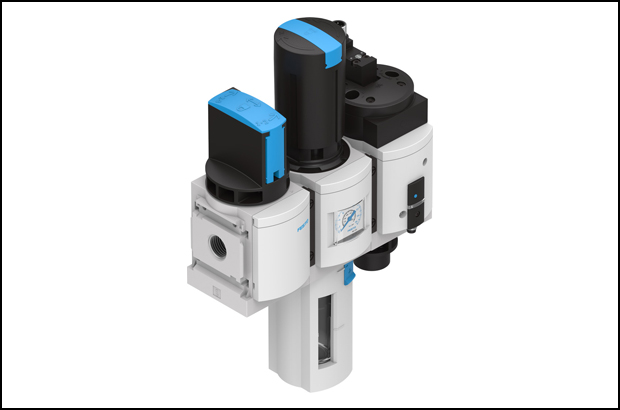

MSB6-1/2:C3:J1:F12-WP
- Size : 6
- Series : MS
- Actuator lock : Rotary knob with detent, can be closed with accessories
- Mounting position : Vertical +/-5°
- Grade of filtration : 40 µm
- Condensate drain : Manually rotating
- Design : Branching module, On/off valve, Filter regulator with pressure gauge
- Controller function : Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
- Bowl guard : Plastic bowl guard
- Symbol : 991758
- Pressure gauge (ANALOG) or Pressure display (DIGITAL) : With pressure gauge
- Operating pressure : 0.8 bar ... 18 bar
- Pressure regulation range : 0.5 bar ... 10 bar
- Standard nominal flow rate : 4500 l/min
- Operating medium : Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
- Note on operating and pilot medium : Lubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC : 2 - Moderate corrosion stress
- PWIS conformity : VDMA24364-B1/B2-L
- Storage temperature : -10 °C ... 60 °C
- Suitable for use with food : See supplementary material information
- Air purity class at output : Compressed air to ISO 8573-1:2010 [7:4:4]
- Media temperature : 0 °C ... 50 °C
- Ambient temperature : 0 °C ... 50 °C
- Product weight : 2000 g
- Type of mounting : With accessories
- Pneumatic connection, port 1 : G1/2v
- Pneumatic connection, port 2 : G1/2
- Pneumatic connection, port 3 : G1/2
- Note on materials : RoHS-compliant
- Material housing : Die-cast aluminium
- Material bowl : PC
Service unit FRC-DB
- Filter, regulator and lubricator functions in a single unit
- With manual or semi-automatic condensate drain
- Size mini

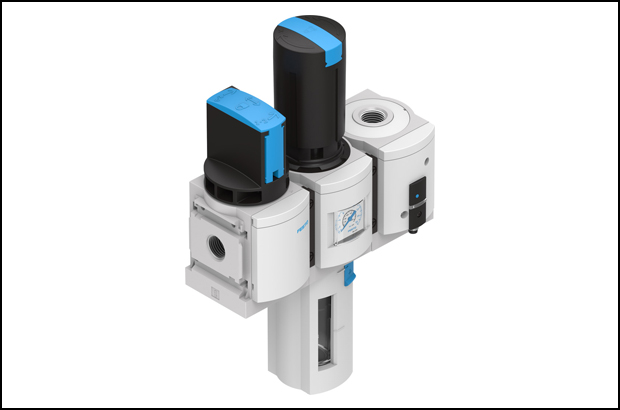

MSB6-1/2:C3:J1:D14-WP
- Size : 6
- Series : MS
- Actuator lock : Rotary knob with detent, can be closed with accessories
- Mounting position : Vertical +/-5°
- Grade of filtration : 40 µm
- Condensate drain : Manually rotating
- Design : On/off valve, Filter regulator with pressure gauge
- Controller function : Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
- Bowl guard : Plastic bowl guard
- Symbol : 995364
- Pressure gauge (ANALOG) or Pressure display (DIGITAL) : With pressure gauge
- Operating pressure : 0.8 bar ... 18 bar
- Pressure regulation range : 0.5 bar ... 10 bar
- Standard nominal flow rate : 4000 l/min
- Operating medium : Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
- Note on operating and pilot medium : Lubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC : 2 - Moderate corrosion stress
- PWIS conformity : VDMA24364-B1/B2-L
- Storage temperature : -10 °C ... 60 °C
- Suitable for use with food : See supplementary material information
- Air purity class at output : Compressed air to ISO 8573-1:2010 [7:4:4]
- Media temperature : 0 °C ... 50 °C
- Ambient temperature : 0 °C ... 50 °C
- Product weight : 2000 g
- Type of mounting : With accessories
- Pneumatic connection, port 1 : G1/2
- Pneumatic connection, port 2 : G1/2
- Pneumatic connection, port 3 : G1/2
- Note on materials : RoHS-compliant
- Material housing : Die-cast aluminium
- Material bowl : PC
